Rubber Tile Vulcanizing Press

  • Rubber Tile Vulcanizing Press
Rubber Tile Vulcanizing Press

I. Characteristic
1. Light specific gravity;
2. No powder particles clean adsorption;
3. Stretch and good elasticity;
4. Particles and strong PU glue adhesive performance not easy threshing;
5. Wear-resisting not easy ageing, keep clean as new;
6. Good weather resistance, small production process affected by temperature, can be all-weather use.

II. Technical Parameter

Model XLB-140T XLB-50T XLB-25T
Nominal clamping mould force 1400KN 400KN 250KN
Max working oil pressure 20 16 16
Hot plate size 1200*1200 600*600 500*500
Hot plate space 400 150 150
Max plunger stroke 1 4 4
Heating mode Electric heating Electric heating
Electric heating
Hot plate pressure per unit area 1.0 1.35 1.0
Motor power 3 2.2 2.2
Overall size 2070*1300*2230 640*1470*2000 570*1450*2100

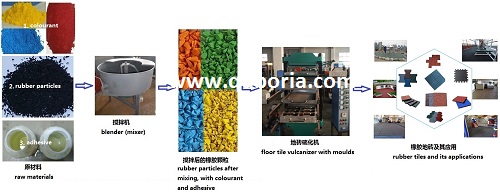

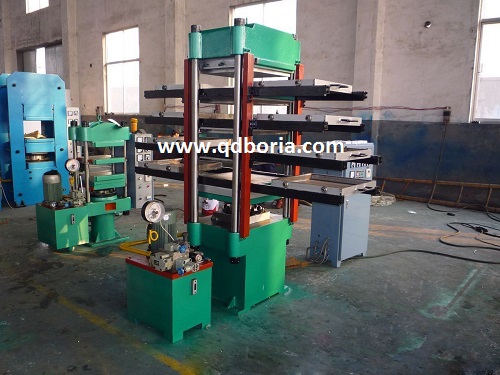

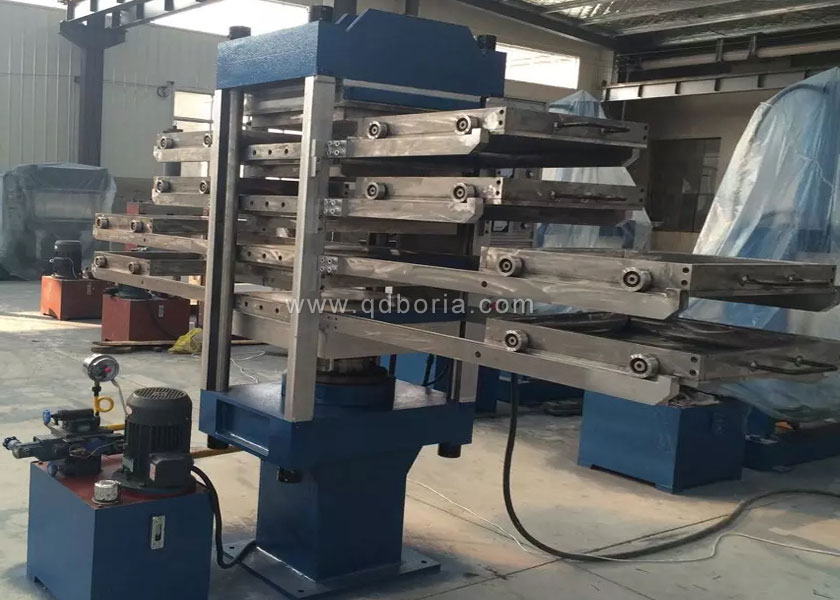

III. Picture for Reference

IV. Packing and Loading

V. Our service

1. Our team could design the most reasonable machines for the customers according to the customers' products and workshop size.

2. We could provide the detailed drawings of the machines for the customers.

3. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
4. If needed,our engineer could install the machines for the customers and give training for their workers.

5. The instruction books of installation and operation will be sent it to the customers together with the machines.

6. We provide 24-hour technical service for the customers. The email address for technical service is tech@qdbojia.cn

7. Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.

VI. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.


1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
If you interested in our products mentioned above, kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
