4 Column Type Automatic Duplex Rubber Vulcanizing Press

  • 4 Column Type Automatic Duplex Rubber Vulcanizing Press
  • 4 Column Type Automatic Duplex Rubber Vulcanizing Press
  • 4 Column Type Automatic Duplex Rubber Vulcanizing Press
4 Column Type Automatic Duplex Rubber Vulcanizing Press4 Column Type Automatic Duplex Rubber Vulcanizing Press4 Column Type Automatic Duplex Rubber Vulcanizing Press

I. Features of rubber plate vulcanizing press
1. Frame structure
2.This press with PLC control, high production efficiency.
3. The presses heating method with steam heating or electrical heating we can as our clients required to design.
4. Press with automatic warning device, high safety and convenient.
5. The machines used for rubber vulcanization are known as rubber vulcanizing machines.
6. This rubber vulcanizing machine strengthens raw rubber by chemically treating it and make rubber harder and stronger.
This vulcanization machine is extremely useful for testing strength of rubber and find applications in numerous industries.

II. Technical Parameter

Item

XLB-160T

XLB-200T

XLB-250T

XLB-315T

XLB-720T

XLB-1260T

Nominal clamping mold force

1600KN

2000KN

2500KN

3150KN

7200 KN

12600KN

Max working-oil pressure

16

16

16

16

16

20

Hot plate size

7500*850

900*900

1000*1000

1200*1200

1800*1200

2100*1500

Hot plate space

125

200

200

200

300

400

Working layers

2

1 / 2

1 / 2

1/ 2

1

1

Max plunger stroke

300

300

300

400

300

400

Heating mode

Steam/Electric heating

Steam/Electric heating

Steam/Electric heating

Steam/Electric heating

Steam/Electric heating

Steam/Electric heating

Hot plate pressure per unit area

2.5

2.5

2.5

2.2

3.3

4.0

The motor power

3

4

5.5

5.5

11

16.5

Dimension

2700*1100*2523

2700*1200*2530

2780*1250*2634

2880*1350*2734

1200*2700*35

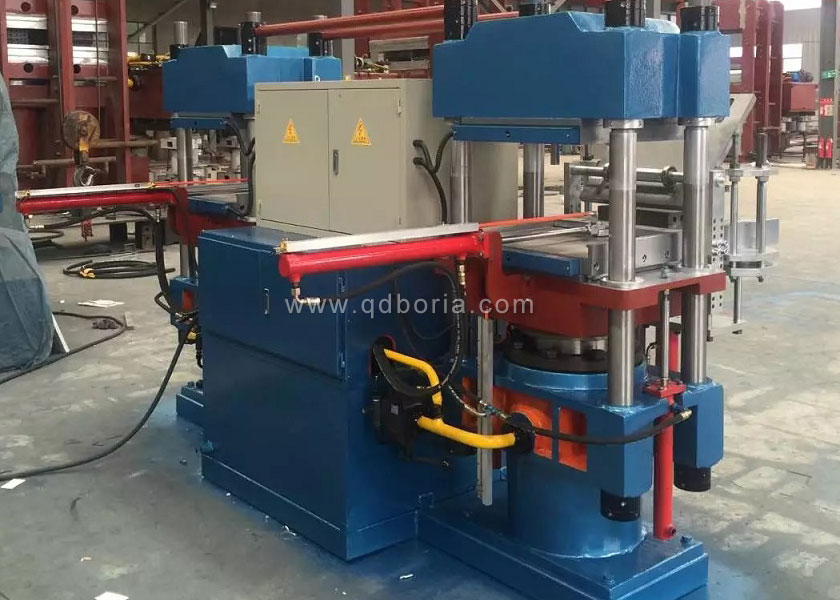

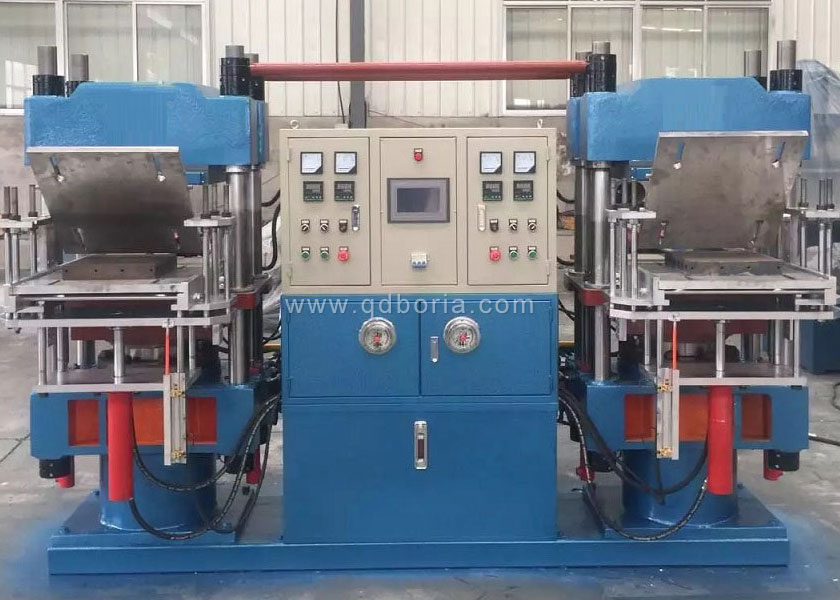

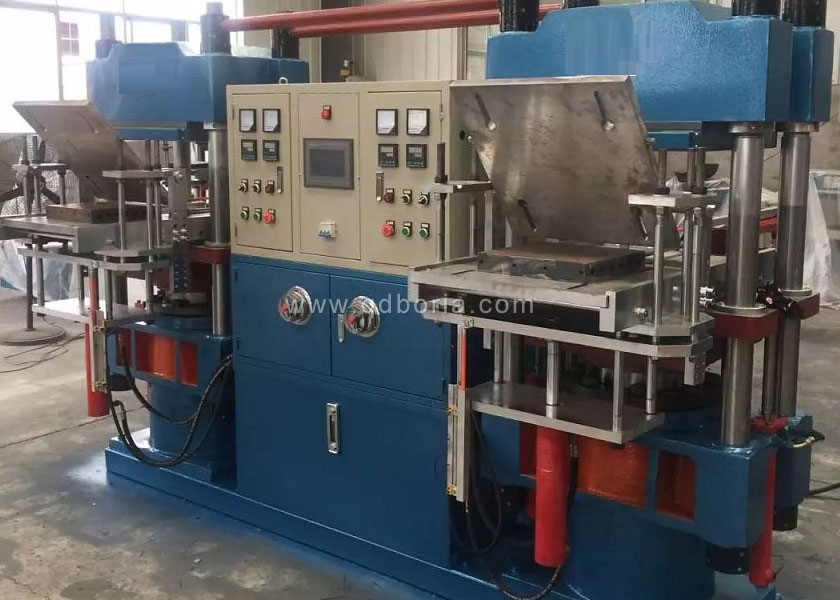

III. Picture for Reference








IV. Packing and Loading



V. Our service

1. Our team could design the most reasonable machines for the customers according to the customers' products and workshop size.

2. We could provide the detailed drawings of the machines for the customers.

3. Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
4. If needed,our engineer could install the machines for the customers and give training for their workers.

5. The instruction books of installation and operation will be sent it to the customers together with the machines.

6. We provide 24-hour technical service for the customers. The email address for technical service is tech@qdbojia.cn

7. Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.


VI. Our machine list
Our company professional manufacture rubber vulcanizing press (frame type,four column type,lab press and so on), rubber mixing mill, batch off cooler, rubber extruder, rubber strip making machine and tire recycling equipment.

FAQ

1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
If you interested in our products mentioned above, kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
